Product Description

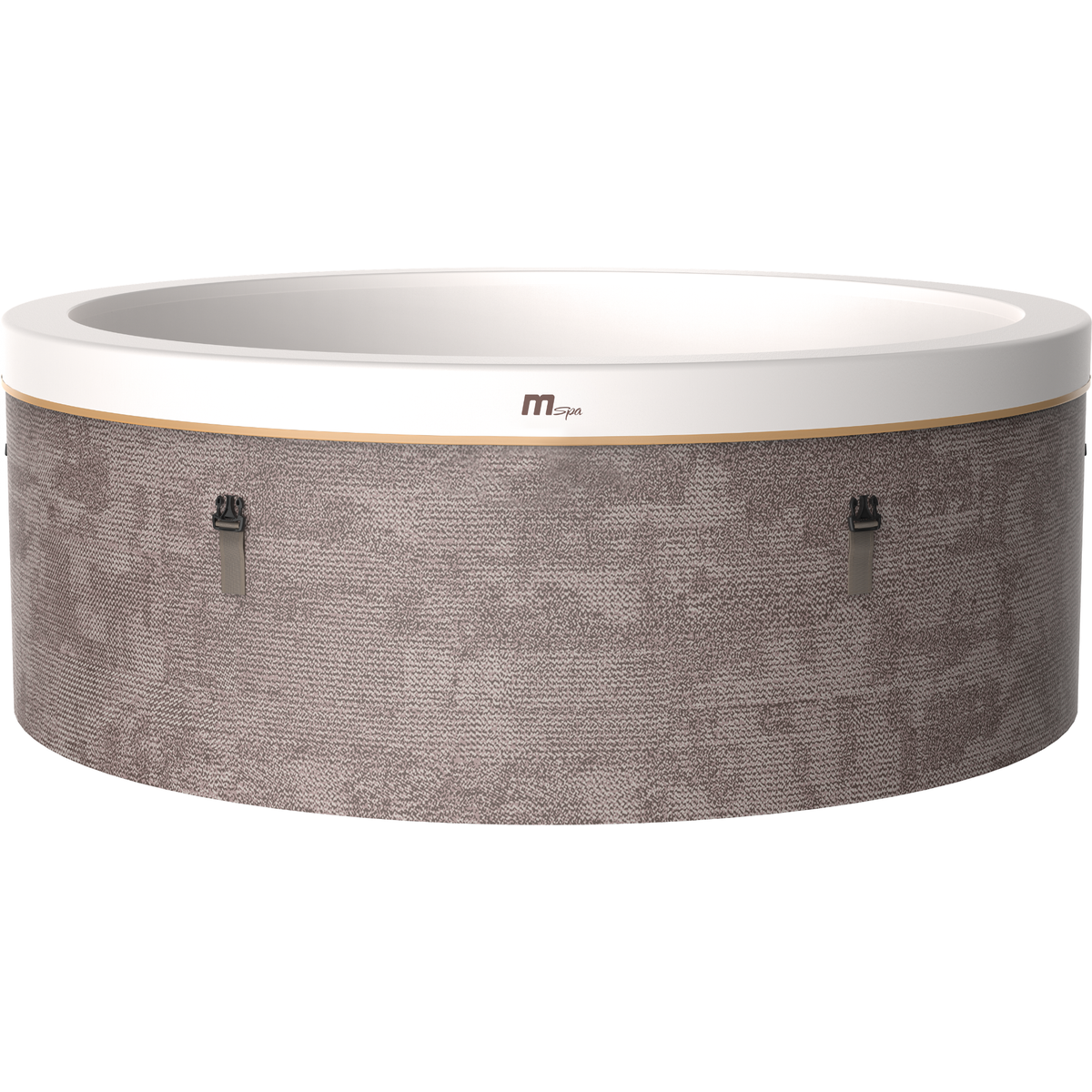

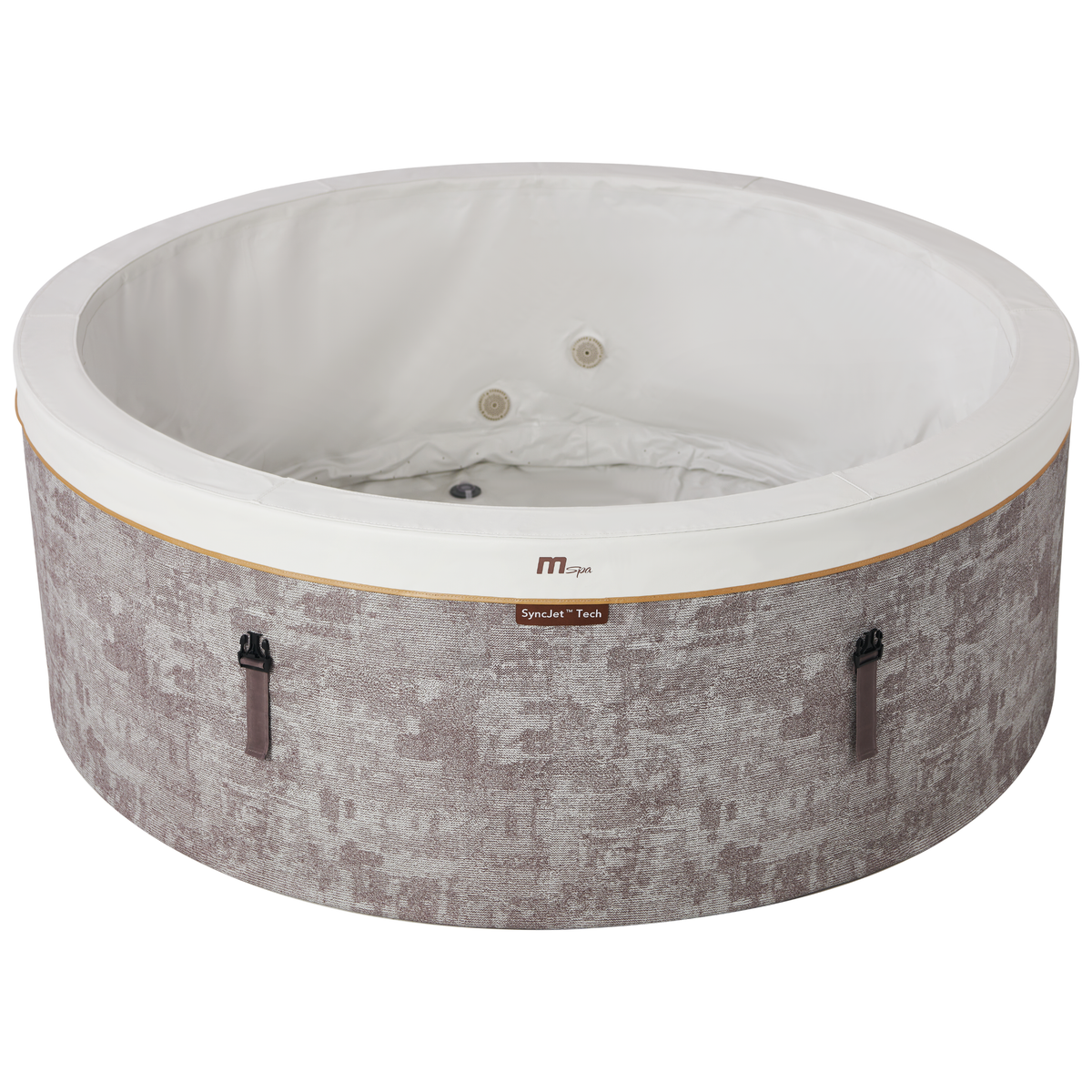

The MSpa F-CO066WE Cocoon is a six-person spa featuring a lightweight, self-supporting structure made from dense EPE foam. Pre-slotted panels and a precision-fit exterior sleeve simplify assembly, allowing two people to complete the manufacturer-estimated setup in approximately 15 minutes without tools.

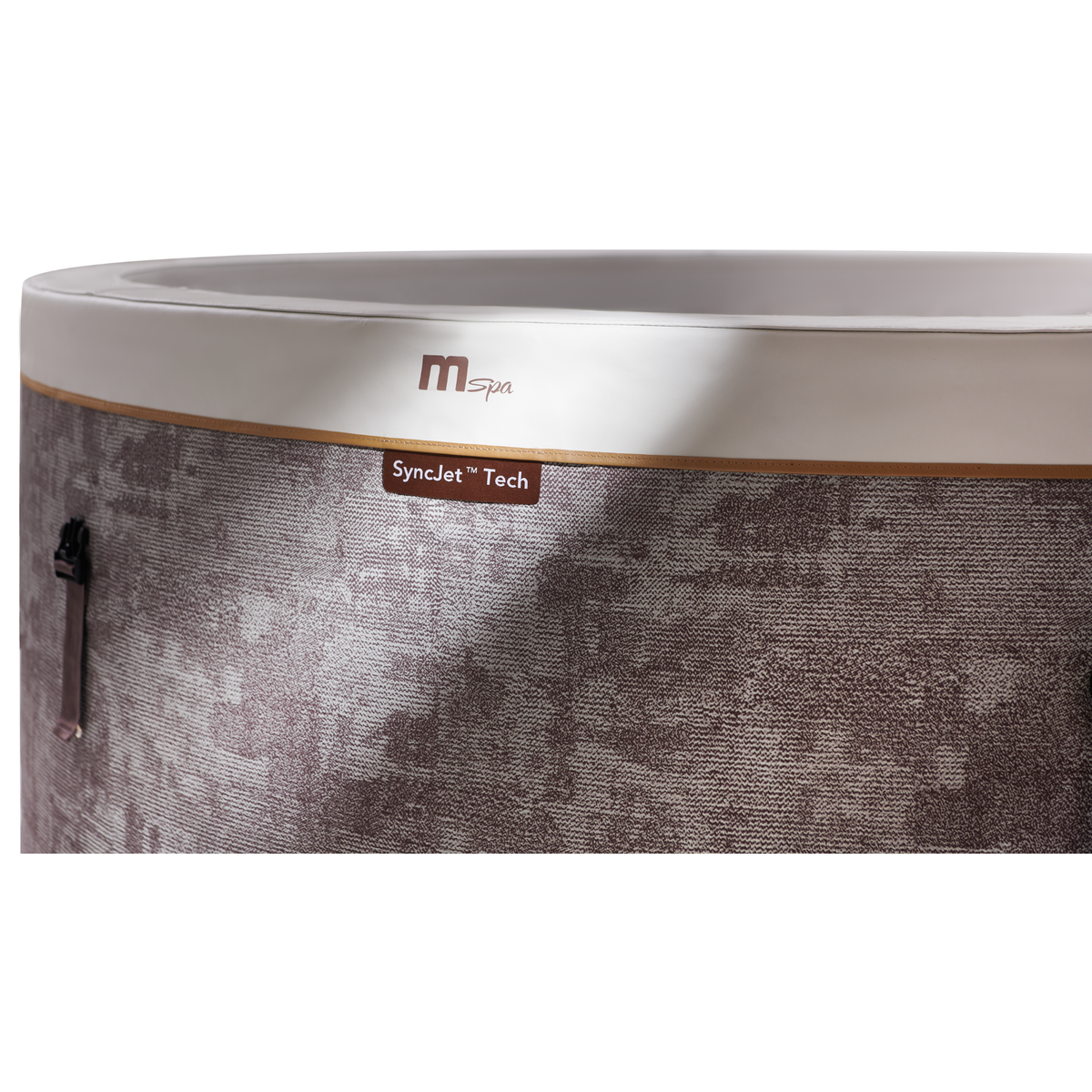

Ten-centimeter-thick foam panels provide structural support and insulation while helping retain water temperature. The textile-inspired exterior has a soft, rug-like appearance that gives the spa a comfortable, contemporary look.
The Cocoon includes 138 air jets with three adjustable power levels. Heating, filtration, sanitization, and scheduling can be managed through the all-in-one control box or the MSpa Link 2.0 mobile app.
Features
- Accommodates up to six adults
- Self-supporting EPE foam structure

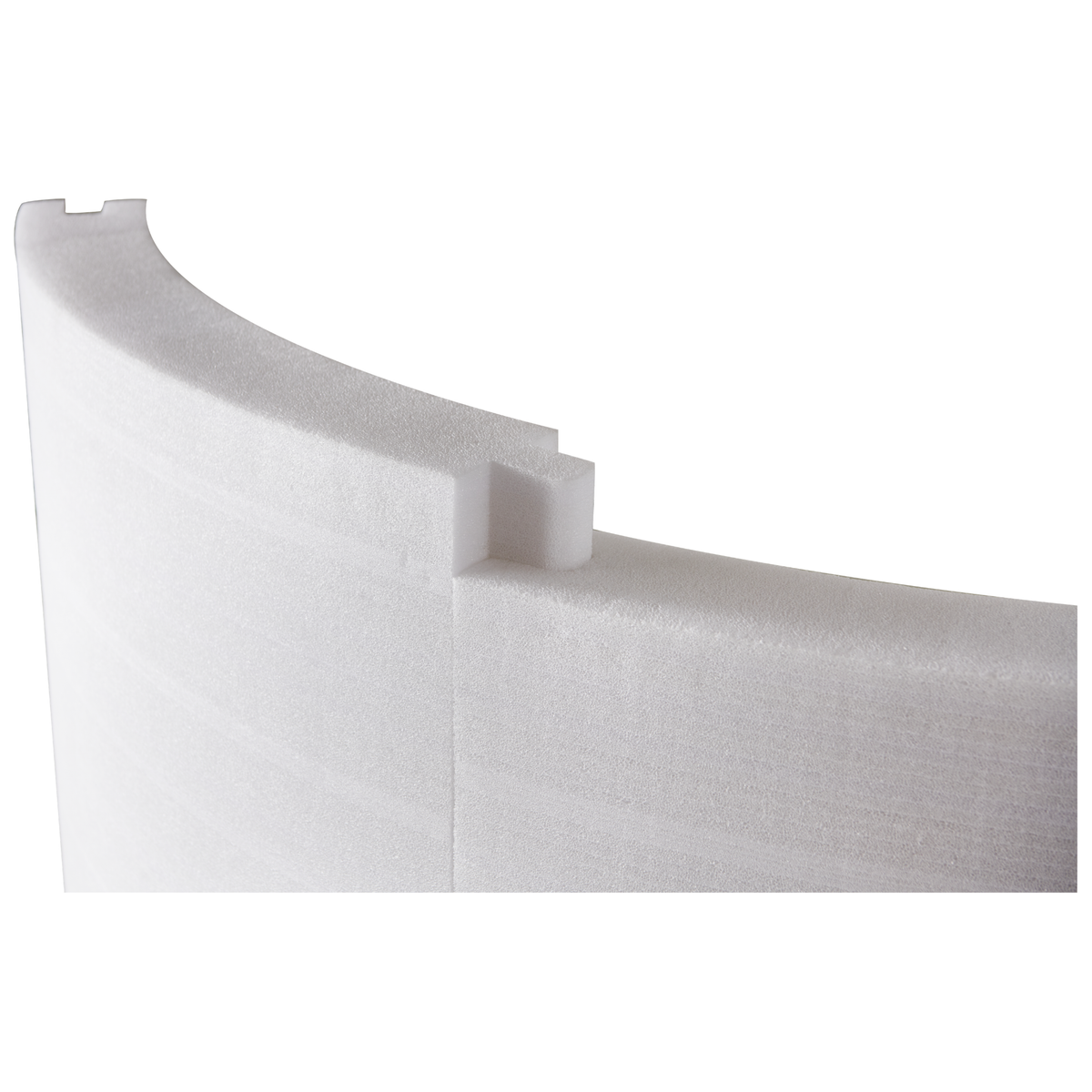

- Pre-slotted foam panels
- 10 cm-thick insulated walls
- Precision-fit exterior sleeve
- Tool-free assembly
- Manufacturer-estimated 15-minute setup with two people

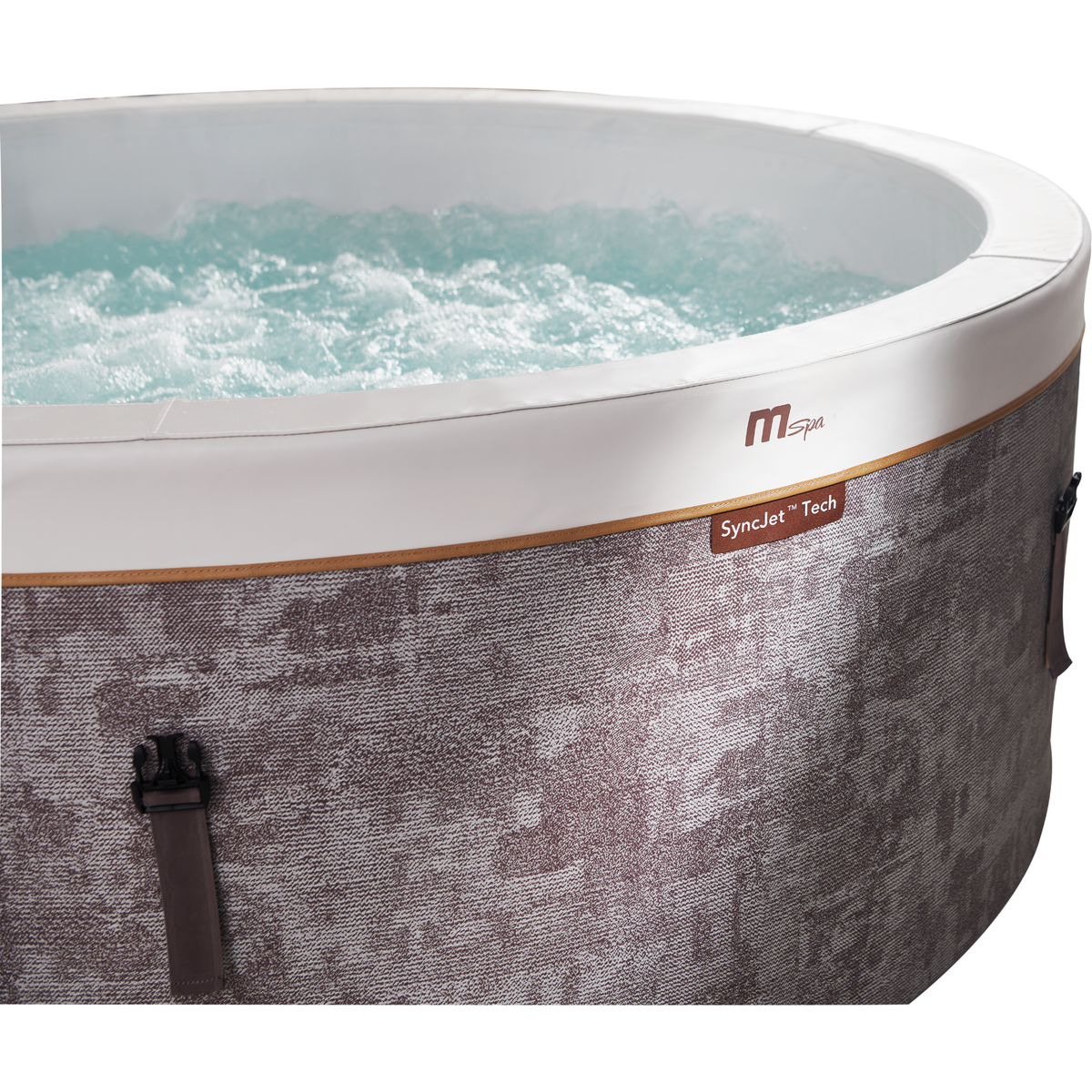

- Textile-inspired exterior

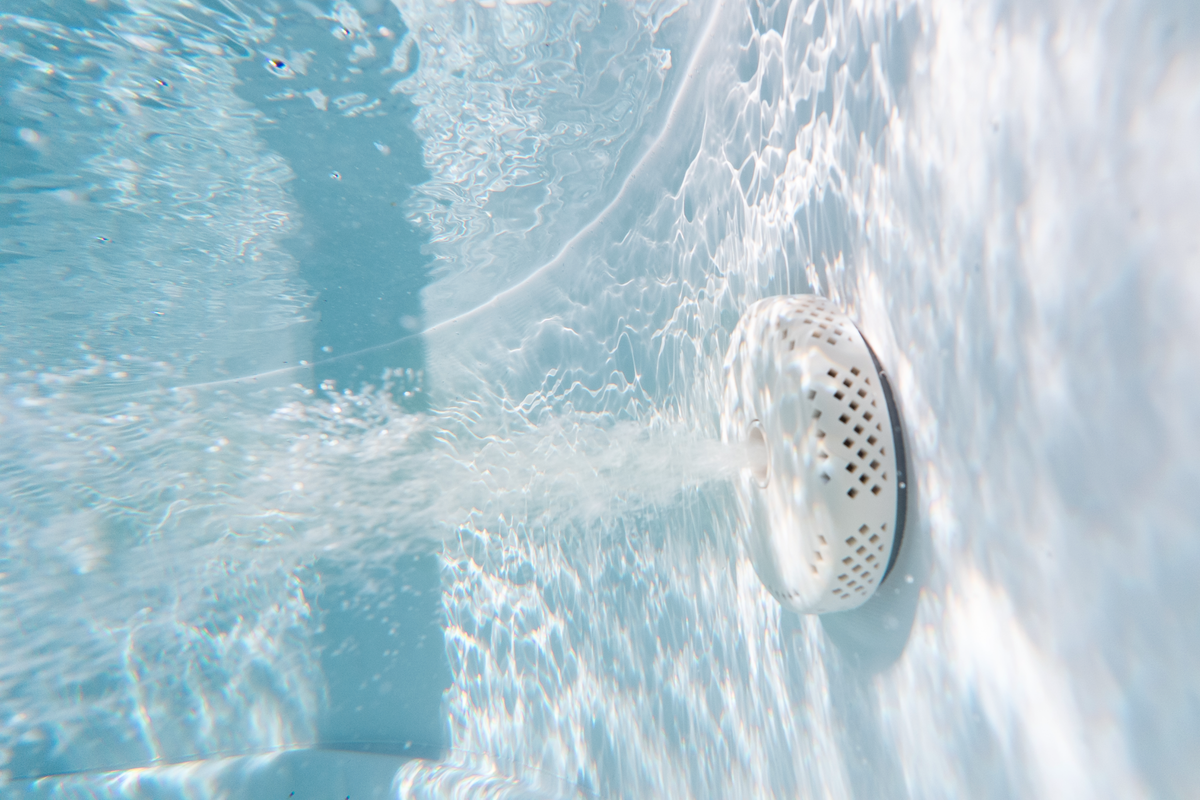

- 138 air jets
- Three air-jet intensity levels
- Integrated 1,350-watt heater

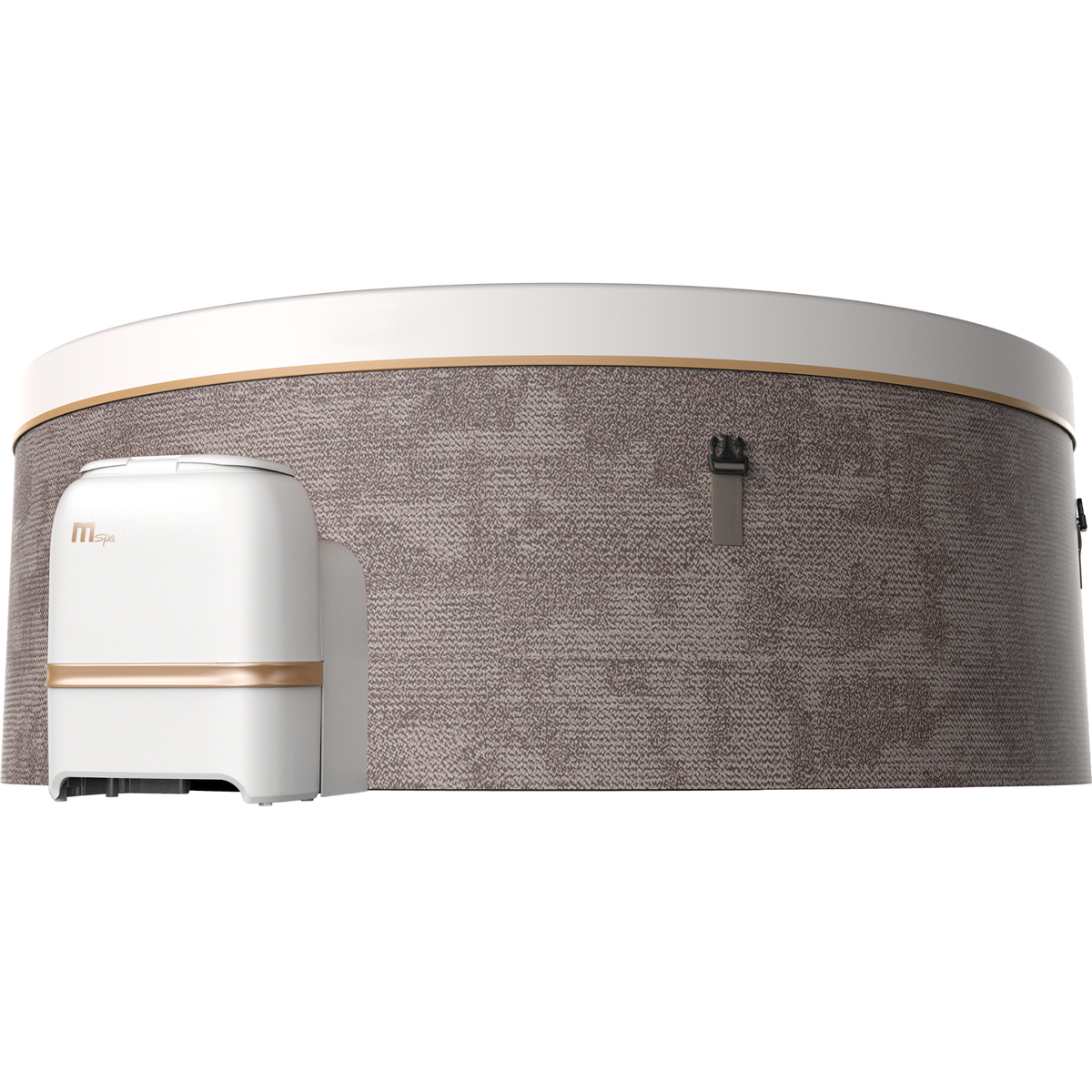

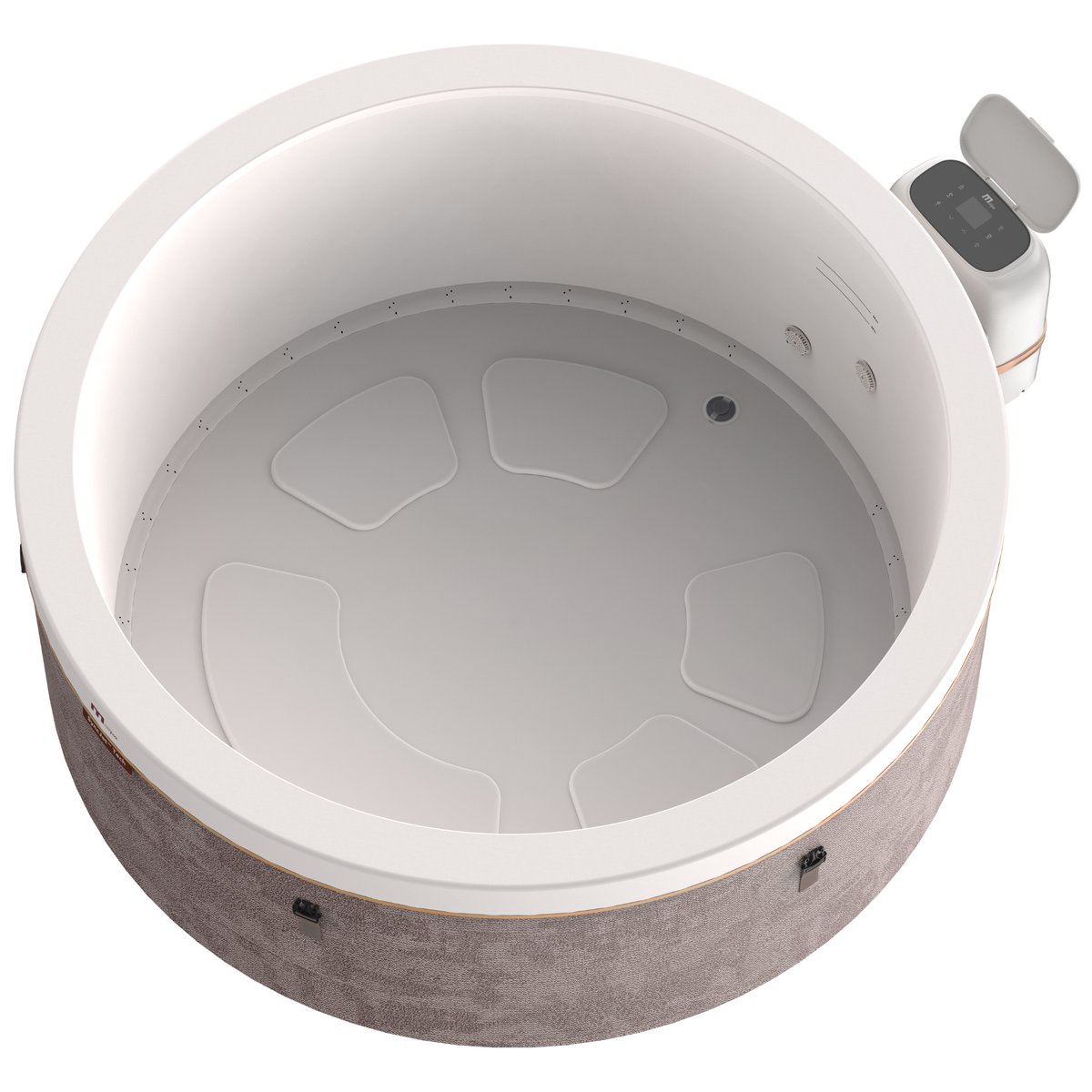

- All-in-one control box
- MSpa Link 2.0 mobile-app controls
- Heating and filtration scheduling
- Built-in UVC sanitization system
- Antibacterial inner-liner fabric
- Automatic filtration reminders
- Anti-icing system
Specifications
- Brand: MSpa
- Model: F-CO066WE
- Collection: Cocoon Verto Series
- Product type: Portable foam-panel spa
- Capacity: Up to 6 adults
- Width: 70.9 in. (180 cm)
- Height: 26 in. (65 cm)
- Net weight: 95.7 lb. (43.4 kg)
- Filled weight: 1,970 lb. (893 kg)
- Water capacity at maximum fill line: 224 gal. (850 L)
- Structure: Dense EPE foam panels
- Wall thickness: 10 cm
- Electrical requirement: 110–120V, 60Hz
- Heater power: 1,350W
- Heating rate: 2.3°F–3°F per hour
- Maximum water temperature: 104°F (40°C)
- Air-jet system: 138 jets
- Air-jet power levels: 300W, 450W and 700W
- Maximum air-jet power: 700W
- Circulated water flow: 1,800 L (545 gal.) per hour
- Controls: All-in-one control box and MSpa Link 2.0 app
- Manufacturer-listed certification: ETL approved
- UPCs: 6954521637730, 6954521636962 and 6954521637129
Care and Use
The manufacturer recommends cleaning the filter cartridge after each use and replacing it every three to five days. A filtration reminder appears at least once per week while the spa remains in operation.
When water temperature falls below 33.8°F (1°C), the anti-icing system automatically heats the water to 37.4°F (3°C). This function is designed to help protect the spa and control box from freezing conditions.
Follow the manufacturer’s instructions for filtration, sanitization, water testing, and routine maintenance. Built-in water-care features do not replace regular spa-water treatment.
